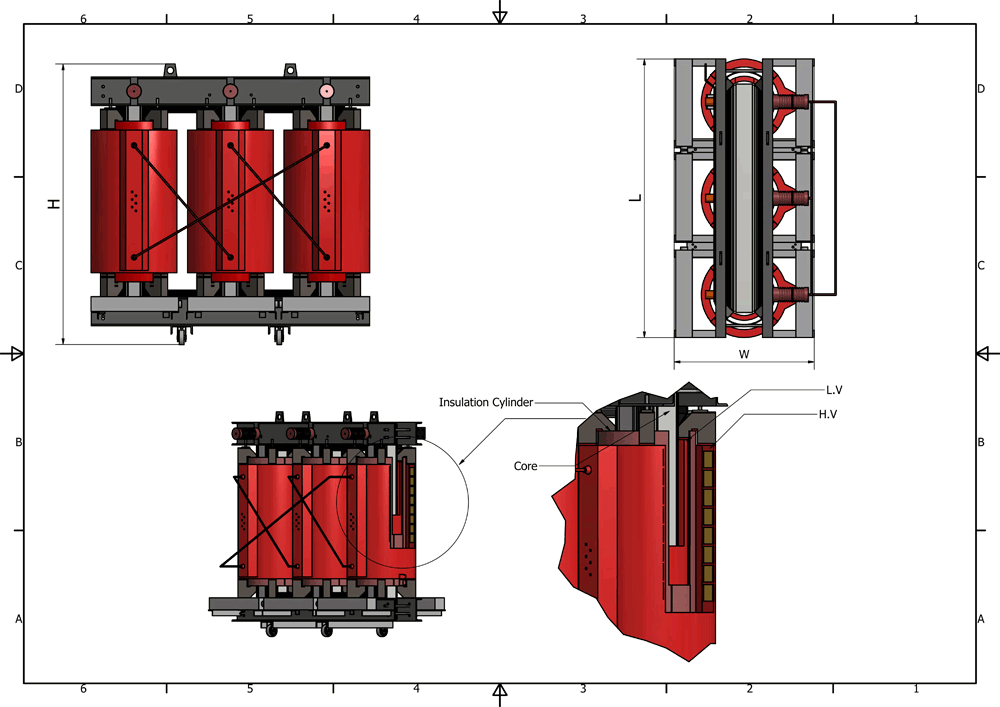

CAST RESIN DRY TYPE TRANSFORMERS


../assets/img/products/Dokme-Recineli-Kuru-Tip-Transformatorler.jpg

ELKİMA Trafo produces quality , innovative products and guarantees performance at top level by flexible design according IEC, TSE, BS standarts. Elkima Trafo has 5 seconds Short Cicuit Withstand and E2, C2, F1 Cetificate from DNV/KEMA- Netherlands laboratory for CAST RESIN Transformer.

*Also Elkima Trafo has Outdoor Cast Resin Transformer which is Enviromental Friendly and free of oil leakage risk.

APPLICATION

  • Hospitals
  • Airports
  • Residences
  • Schools
  • Offfshore – Oil Industry Applications
  • Military Bases
  • All Crowded Places

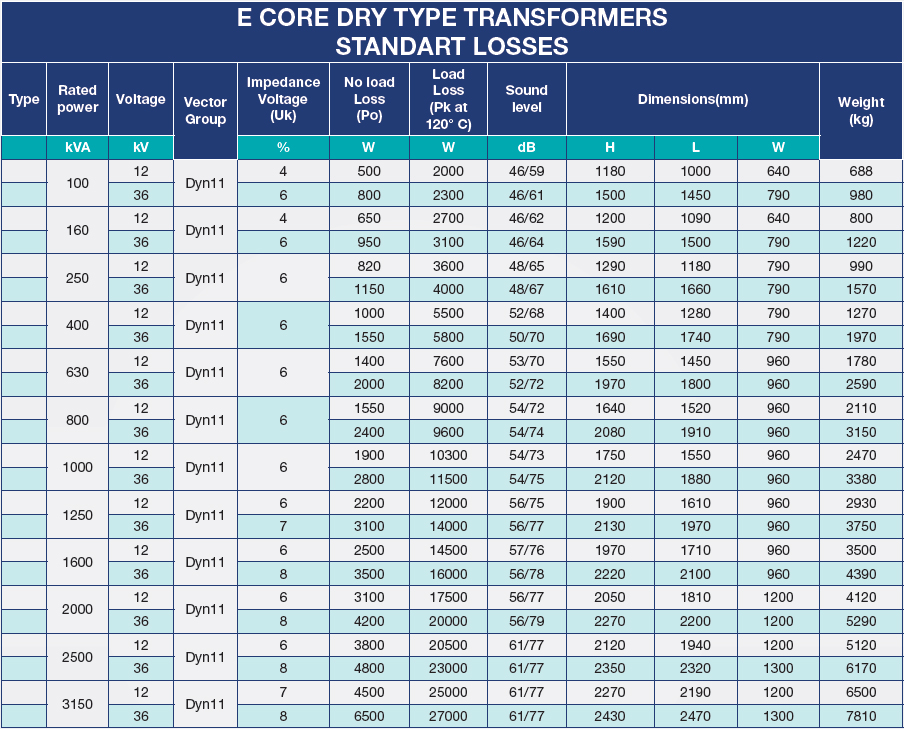

DESIGN

  • Up to 36kV and 5MVA
  • 50-60Hz.
  • 3 Phase
  • E2/C2/F1
  • F/H Insulation – Thermal Class
  • Indoor - Outdoor applications
  • IP00-IP21-IP23-IP31-IP44

FEATURES

  • Safely (self extinguishing, fire safe)
  • Maintenance Free
  • Environmental Friendly (No Oil Leakage Risk)
  • High hotspot Temperature (F-155’C, H-180’C)
